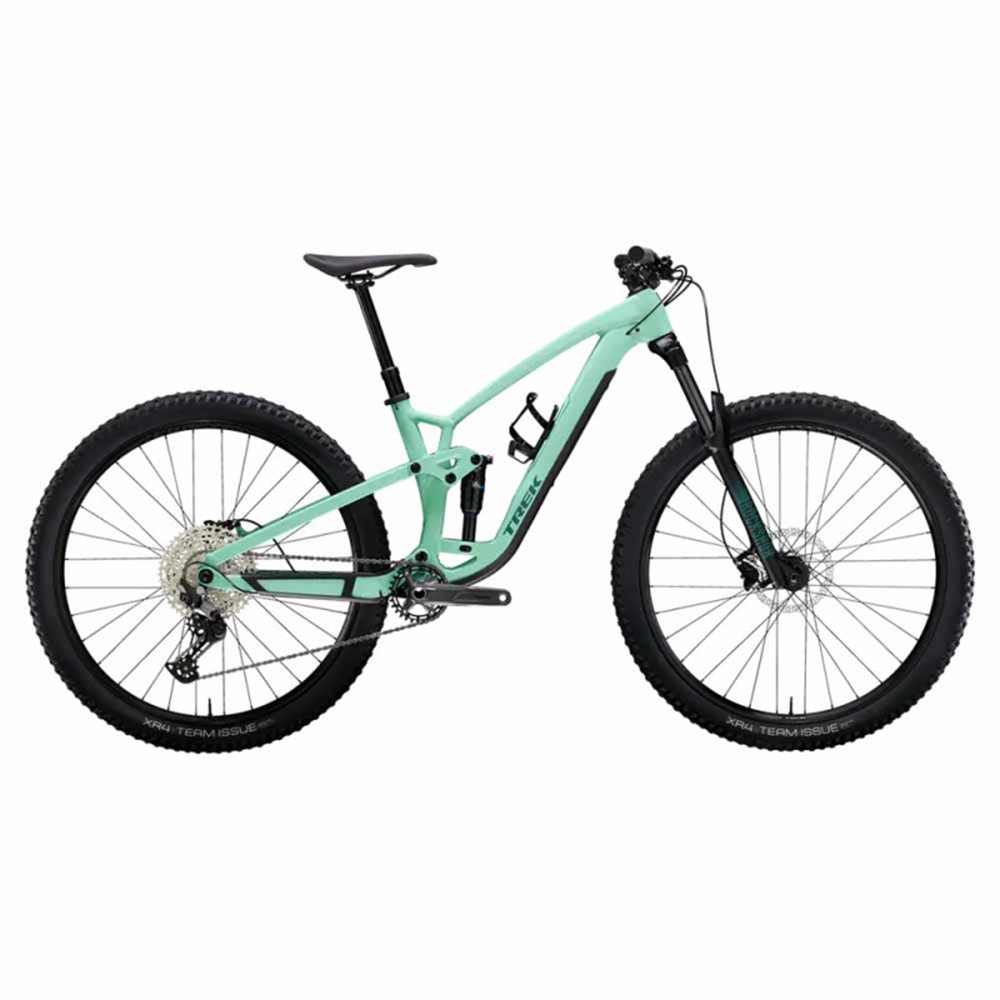

2025 Trek Fuel EX 5 Gen 6 Mountain Bike
Product Description
2025 Trek Fuel EX 5 Gen 6 Mountain Bike
| FRAME | Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Tire Clearance: 2.5" Colors: Galactic Grey / Darkstar; Matte Blue Sage |
|---|---|
| FORK |
Size XS, S: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 140mm travel Size XS, S: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 140mm travel Size S, M, ML, L, XL, XXL: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 150mm travel Size M, ML, L, XL, XXL: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel Travel: 140–150mm Spring Type: Air |
| SHOCK | X-Fusion Pro 2, 2-position damper, 185mm x 55mm Travel: 140mm |
| BOTTOM BRACKET | Shimano BB-MT501 BSA |
| HEADSET | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| STEM |
Size XS, S: Bontrager Comp, 31.8mm, 7°, 35mm length Size M, ML, L, XL, XXL: Bontrager Comp, 31.8mm, Blendr compatible, 7°, 50mm length |
| HANDLEBAR | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| SADDLE |
Bontrager Arvada, steel rails, 138mm width (XS–XXL) Bontrager Verse Short, stainless steel rails (XS–XXL) |
| SEATPOST |
Size XS, S: TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length Size M, ML: TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length Size L, XL, XXL: TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length Type: Dropper |
| GRIPS | Bontrager XR Trail Comp, nylon lock-on |
| REAR DERAILLEUR | Shimano Deore M6100, long cage |
| CRANK | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| SHIFTERS | Shimano Deore M6100, 12 speed |
| CASSETTE | Shimano Deore M6100, 10-51T, 12 speed |
| CHAIN | Shimano Deore M6100, 12 speed |
| BRAKES | Shimano hydraulic disc, MT201 lever, MT200 caliper Type: Shimano Hydraulic Disc |
| RIMS | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
| FRONT HUB | Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
| REAR HUB | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| TIRES |
Size XS, S: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" Size S, M, ML, L, XL, XXL: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| DISC ROTORS | Shimano RT56, 6-bolt, 180mm |
